Coil Compactors

Benefits of using Coil Compactors:

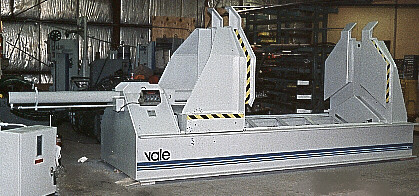

Vale Coil Compactor

Compactor Specifications.

Light Duty Standard Duty Heavy Duty
Maximum Force 11 Tons 25 Tons 41 Tons
Approximate weight 9,000 lbs. 15,000 lbs. 25,000 lbs.
Coil Diameter 35-60" 35-60" 20.6
Opening 96" 96" 96"
Stroke 84" 84" 84"
Power unit H.P. 7.5 30 50
Height 84" 84" 84"
Length 240" 240" 240"

Optional features include: Self unloading bed, scale to determine coil weight and c hook bridges. Note that all sizes stated are 'standard' examples, the compactor will be sized in stroke and length to fit the customers needs.

Video of a Coil Compactor at work

This video is hosted by YouTube and will only display if you have the Macromedia Flash player installed.  This is a very common "plug in" and most browsers have it.  If you can see the video above, then you have the Flash plug in and should be able to view the video.  If you see a message about downloading a plug in, then your browser does not have the Flash Player installed.



Pneumatic Cutting Tool
Pneumatic cutting tool
Ideal for cutting small diameter wires, hard or soft.


World's Largest Upset Tester
VU5B Upset Tester
